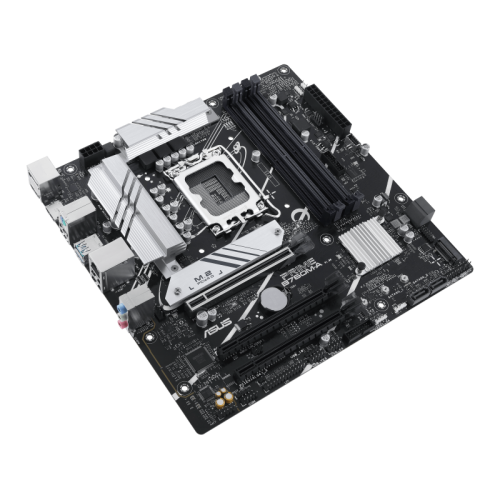

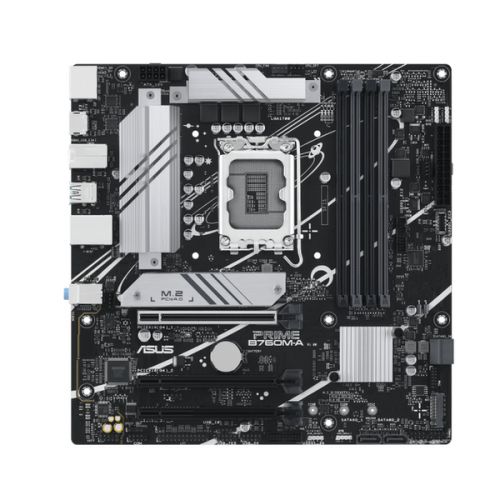

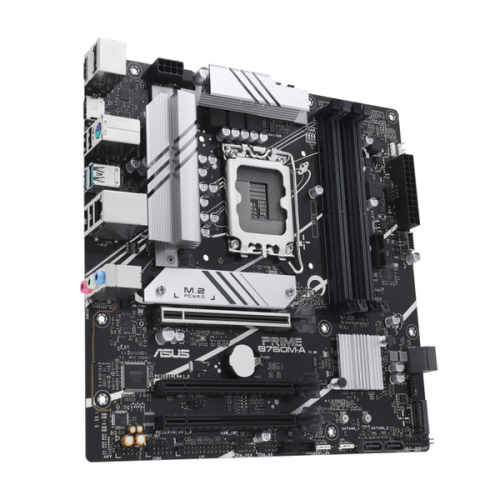

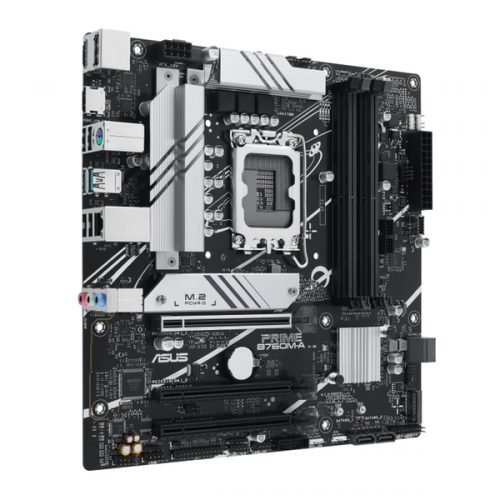

Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Referências | |
Marca | Asus |
Modelo | B760M-A-CSM |
Part Number | 90MB1EK0-M0EAYC |
Código de Produto | 902022 |
Carateristicas Gerais | |
Formato da Motherboard | Micro ATX |
Socket / Processador | Skt1700 |
Chipset | B760 |
Marca Chipset | Intel® |
BIOS | 128Mb AMI UEFI Legal BIOS |
Processadores Compatíveis | Supports Intel 12th and13th Gen |
Memória | |
Tipo de slots de memória | 4 x DIMM, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
Tipos de memórias suportadas | DDR5 |
Número de slots de memória | 4 |
Memória máxima | 128GB |
Outras Informações | |
Garantia | 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final) |
Audio, Video e Rede | |
Rede | Gigabit LAN 10/100/1000 Mb/s |

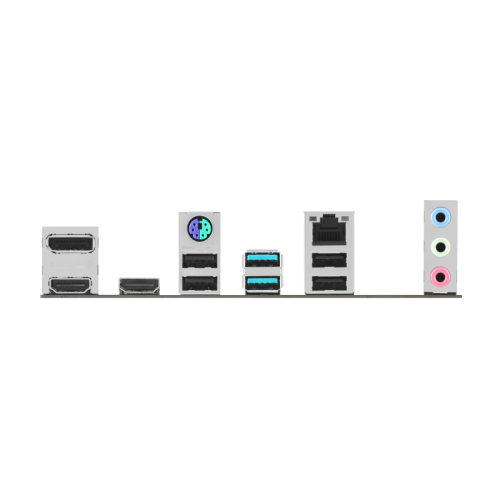

Portas E/S | |
USB 3.2 (Ger. 1) | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
USB 2.0 | 4 x USB 2.0 ports (4 x Type-A) |
HDMI | 2x |
Mini DP / Display port | 0x / 1x |
PS/2 | 1x |
Áudio | 3x |

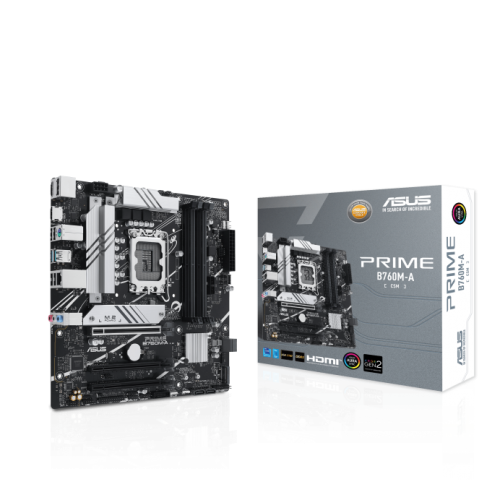

Motherboard Skt1700 Asus Prime B760M-A-CSM
-
Categoria: Placas Mãe ( MotherBoards ) |
- Marca: Asus
- Modelo: 90MB1EK0-M0EAYC
- Referência.Int: 902022
- Disponibilidade: Sem Stock
Etiquetas: 15-90MB1EK0-M0EAYC
