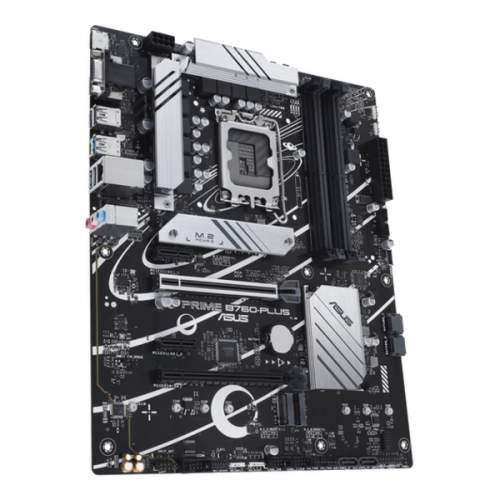

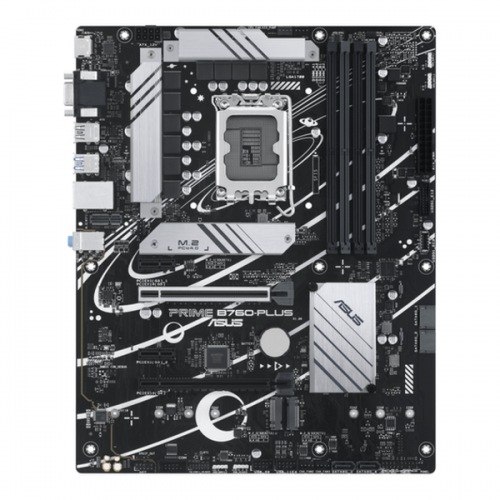

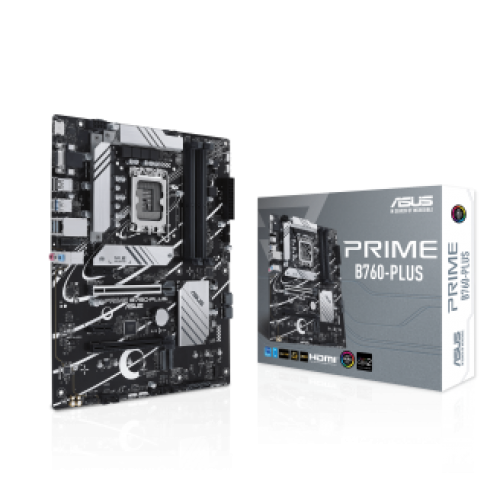

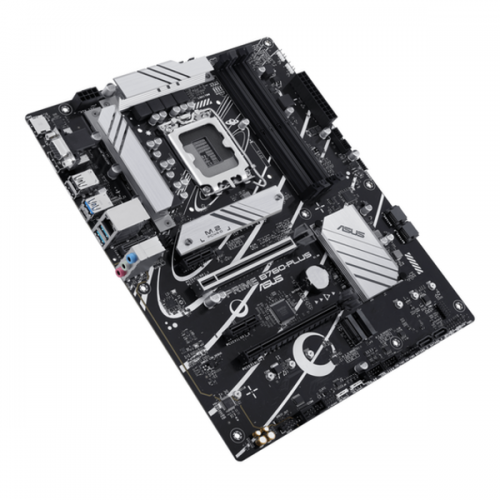

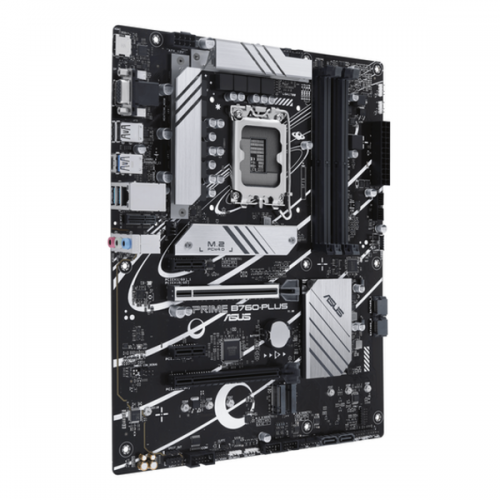

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Detalhes técnicos | |
Formato | ATX |
Referências | |
Marca | ASUS |
Modelo | PRIME B760-PLUS |
Part Number | 90MB1EF0-M0EAY0 |
Código de Produto | 902286 |
EAN | 4711387102985 |
Carateristicas Gerais | |
Formato da Motherboard | ATX |
Socket / Processador | LGA1700 |
Chipset | Intel® B760 |
Marca Chipset | Intel® |
Memória | |
Velocidade suportada | DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
Tipos de memórias suportadas | DDR5 |
Número de slots de memória | 4x |
Memória máxima | 192GB |
Outras Informações | |
Garantia | 1 Ano + 2º/3ºAno DL84/2021 (Consumidor Final) |
Audio, Video e Rede | |
Rede | 1x Realtek 2.5Gb Ethernet |
Portas E/S | |
USB 3.2 (Ger. 1) | 1x |
USB 2.0 | 2x |
USB 3.2 (Ger. 2) | 2x Type A 1x Type C 2x2 |
VGA | 1x |
HDMI | 1x |
Mini DP / Display port | 0 / 1x |
Slots de expansão | |
PCIe x16 | 1x |
PCIe X1 | 2x |
M.2 | 3x |
MotherBoard Skt1700 ASUS PRIME B760-PLUS
-
Categoria: Placas Mãe ( MotherBoards ) |
- Marca: Asus
- Modelo: 90MB1EF0-M1EAY0
- Referência.Int: 902114
- Disponibilidade: Sem Stock
Etiquetas: 15-90MB1EF0-M1EAY0
